GPS Module Explanation: All You Need to Know to Get Started

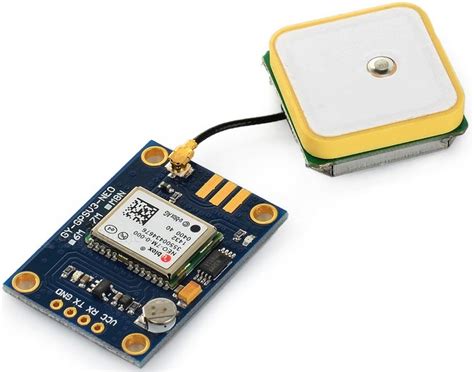

1. What is a GPS Module?
A GPS (Global Positioning System) module is an electronic device that allows a device to determine its location, speed, and time. It does so by receiving signals from satellites orbiting the Earth. It is commonly used in various applications such as navigation systems, vehicle tracking, and surveying.
| Feature | Description |
|---|---|
| Receives satellite signals | Determines location, speed, and time |
| Compact and affordable | Widely used in navigation and tracking systems |
2. How Do GPS Modules Work?
GPS modules work by triangulating its position based on signals received from GPS satellites. It measures the time it takes for the signal to travel from the satellite to the module, allowing it to calculate the distance to each satellite. By combining these distances with information from at least four satellites, the module can determine its position in three dimensions.
| Step | Description |
|---|---|
| Receive satellite signals | Measure time and distance to satellites |
| Triangulate position | Combine distances from multiple satellites |
| Determine location in 3D | Calculate latitude, longitude, and altitude |
3. Types of GPS Modules
There are several types of GPS modules available, each with its advantages and applications.
| Type | Description | Applications |
|---|---|---|
| Active GPS | High accuracy, fast acquisition | Navigation systems, vehicle tracking |
| Passive GPS | Lower cost, slower acquisition | Data logging, asset tracking |
| Assisted GPS (A-GPS) | Improved accuracy in urban areas | Mobile devices, navigation systems |
4. Factors to Consider When Choosing a GPS Module
- Accuracy: Consider the required accuracy for your application
- Acquisition time: Choose modules that can quickly acquire signals
- Power consumption: Select modules with low power consumption for battery-powered devices
- Cost: Determine the budget for the module
- Size and weight: Ensure the module fits the size constraints of your project
5. Interfacing with GPS Modules
GPS modules typically have various interfaces such as serial, SPI, and USB. You can choose the interface that best suits your application.
| Interface | Description |
|---|---|
| Serial | Simple and widely supported |
| SPI | High-speed interface for faster data transfer |
| USB | Plug-and-play connectivity for convenience |
6. Applications of GPS Modules
GPS modules have numerous applications across various industries, including:
- Navigation systems: Guiding cars, boats, and hikers with accurate location data
- Vehicle tracking: Monitoring the movement of vehicles for fleet management and security
- Surveying and mapping: Determining the location of points and features for construction and planning
- Asset tracking: Keeping track of valuable equipment and inventory
7. Common Challenges with GPS Modules
- Signal blockage: Buildings, trees, and other obstacles can block GPS signals, leading to reduced accuracy
- Multipath: Signals reflected off of buildings and other surfaces can interfere with accuracy
- Spoofing: Malicious actors can transmit fake GPS signals to deceive devices
8. Troubleshooting GPS Module Issues
If you encounter problems with your GPS module, consider the following troubleshooting tips:
- Check for physical obstructions: Ensure there are no objects blocking the view of the sky
- Update the GPS firmware: Install the latest firmware to ensure optimal performance
- Reset the module: Power cycle the module to reset any temporary issues
- Contact the manufacturer: If you still have issues, seek support from the GPS module manufacturer
9. FAQs about GPS Modules
Q: What is the accuracy of a GPS module? A: Accuracy can vary depending on the type of module and the operating environment, typically ranging from meters to sub-meter accuracy.
Q: How often do GPS modules update their position? A: Update rates can vary, but common intervals are 1Hz (once per second) and 10Hz (ten times per second).
Q: Can GPS modules be used indoors? A: Passive GPS modules may struggle indoors due to signal blockage, while active GPS modules with assisted technology can provide some indoor positioning capabilities.
Q: How much power do GPS modules consume? A: Power consumption varies depending on the module, but typical active GPS modules draw around 50mA, while passive GPS modules consume less than 10mA.
10. Conclusion
GPS modules offer an effective way to determine the location of devices. Whether you're building navigation systems or tracking assets, understanding how GPS modules work and the factors to consider when choosing one can help you select the best module for your project. By following the troubleshooting tips and FAQs provided, you can overcome common challenges and ensure optimal performance. GPS technology continues to advance, offering even more accurate and reliable positioning solutions for a wide range of applications.
