RAIM GPS Explained: A Comprehensive Guide to Receiver Autonomous Integrity Monitoring
Introduction
Receiver Autonomous Integrity Monitoring (RAIM) is a critical technology in the field of aviation, providing pilots with essential information about the reliability of GPS signals. By monitoring and evaluating satellite signals, RAIM alerts pilots to potential errors or degradations in the GPS system, ensuring the safe and accurate navigation of aircraft.
RAIM GPS

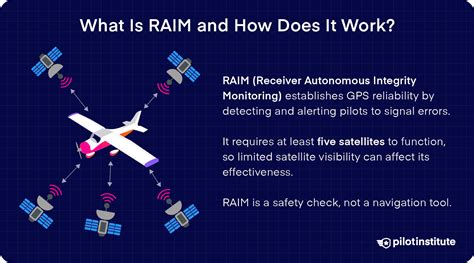

RAIM is an augmentation system that operates independently of the GPS constellation. It works by receiving signals from multiple GPS satellites and comparing them to determine their accuracy and reliability. If a significant discrepancy is detected, RAIM issues a warning to the pilot, indicating that the GPS data may be unreliable.
How RAIM Works
RAIM employs several techniques to monitor GPS signals:
- Redundant Satellite Data: RAIM utilizes multiple satellite signals to create redundant measurements. By comparing these measurements, it can identify any outliers or errors.
- Statistical Analysis: RAIM uses statistical models to analyze the consistency and accuracy of GPS signals. It compares the received signals to predicted values to identify potential anomalies.
- Fault Detection and Exclusion (FDE): RAIM detects and excludes faulty satellites from the navigation solution. It identifies satellites that are transmitting erroneous signals or experiencing technical issues.
Benefits of RAIM
RAIM provides numerous benefits for aviation:
- Enhanced Safety: RAIM alerts pilots to potential GPS errors, reducing the risk of navigation incidents and accidents.
- Improved Navigation Accuracy: By excluding faulty satellites, RAIM ensures that the GPS data used for navigation is highly accurate and reliable.
- Reduced Reliance on Ground-Based Systems: RAIM allows aircraft to navigate independently without relying heavily on ground-based systems such as VORs or NDBs.
Limitations of RAIM
RAIM does have some limitations:
- Availability: RAIM requires coverage from multiple GPS satellites to operate effectively. It may not be available in certain areas or during periods of satellite outages.
- Cost: RAIM-capable receivers are more expensive than standard GPS receivers.
- Susceptibility to Jamming: RAIM is susceptible to interference from jamming signals that can degrade GPS signal quality.
Implementation of RAIM
RAIM is implemented in aviation through several means:
- RAIM-Capable Receivers: Aircraft are equipped with RAIM-capable receivers that analyze GPS signals and provide alerts if necessary.
- RAIM Validation: Pilots must validate the accuracy of RAIM alerts by performing a RAIM test before each flight.
- Supplemental Systems: In areas where RAIM coverage is limited, pilots may use supplemental navigation systems such as inertial navigation systems (INS) or ground-based navigation aids.
FAA Requirements for RAIM
In the United States, the Federal Aviation Administration (FAA) requires RAIM for certain types of aircraft operations, including:
- Instrument Flight Rules (IFR): All aircraft operating under IFR must be equipped with RAIM-capable receivers.
- Non-Precision Approach Procedures: RAIM is required for non-precision approach procedures that rely solely on GPS for navigation.
- En Route Navigation: RAIM is recommended but not required for en route navigation.
Conclusion
RAIM is a crucial technology in aviation, enhancing safety and navigation accuracy. By monitoring GPS signals and alerting pilots to potential errors, RAIM reduces the risk of navigation incidents and accidents. As GPS technology continues to evolve, RAIM will play an increasingly vital role in ensuring the safe and efficient navigation of aircraft.
FAQs
What is the difference between RAIM and WAAS? RAIM is an autonomous system that uses multiple GPS satellite signals to detect and exclude faulty satellites. WAAS is a ground-based augmentation system that provides corrections and enhancements to GPS signals.
How often should I perform a RAIM test? The FAA recommends that pilots perform a RAIM test before each flight under IFR.
What happens if RAIM detects an error? RAIM will issue an alert to the pilot, indicating that the GPS data may not be reliable. The pilot should then use caution and consider using supplemental navigation systems.
Can I use RAIM in all areas? RAIM coverage is not available everywhere. Pilots should check the availability of RAIM in the specific airspace they are flying.
What are the limitations of RAIM? RAIM is susceptible to jamming and may not be available in all areas.
What are the benefits of RAIM? RAIM enhances safety, improves navigation accuracy, and reduces reliance on ground-based systems.
Is RAIM required for all types of aircraft operations? RAIM is required for IFR operations and non-precision approach procedures that rely solely on GPS.
How can I improve the performance of RAIM? Use a high-quality RAIM-capable receiver and ensure that the antenna is properly installed.
What should I do if I encounter RAIM problems? Contact the manufacturer of your RAIM receiver for assistance.
Where can I find more information about RAIM? Refer to the FAA Aeronautical Information Manual (AIM) or the manufacturer's user manual for your RAIM receiver.
